Technical Parameter:
| Model | CW-400NT2 |
| Max Bag Making Width | 350mm×2 |
| Max Bag Making Length | 400-600mm |
| Bag making thickness | 0.01-0.05 mm |
| Speed of bag making | 150-200pcs/min |
| Weight | 1400kg |
| Overall Dimensions | 6000×1400×1600mm(L x W x H) |
■ Because of the non-stop improving of machine and development of new functions, appearance and specification is subject to change without notice.

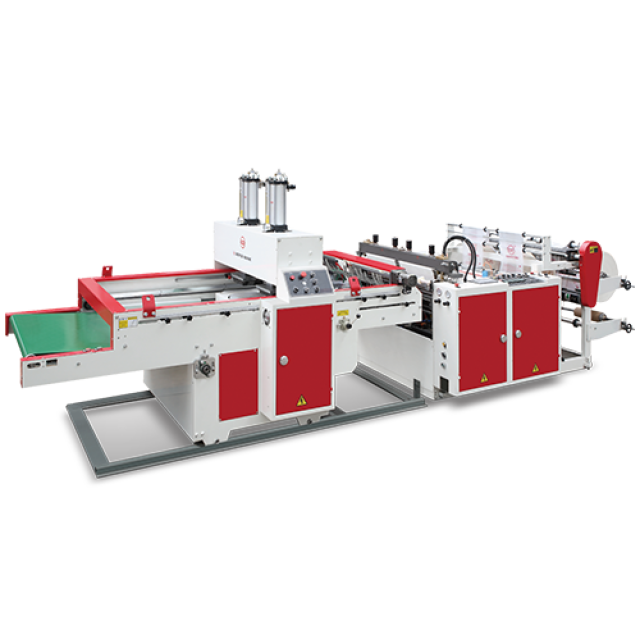

It is applied to produce and print the double-lane or non-printed vest bags/ t shirt bags, using HDPE, LDPE roll film. It adopts PLC control, double servo motors control and the touch screen actual display to finish the feeding, sealing, cutting, punching in one process, which can save man-power greatly and yield good economic result.
1 Servo motor
2 PLC control
3 Touch display screen

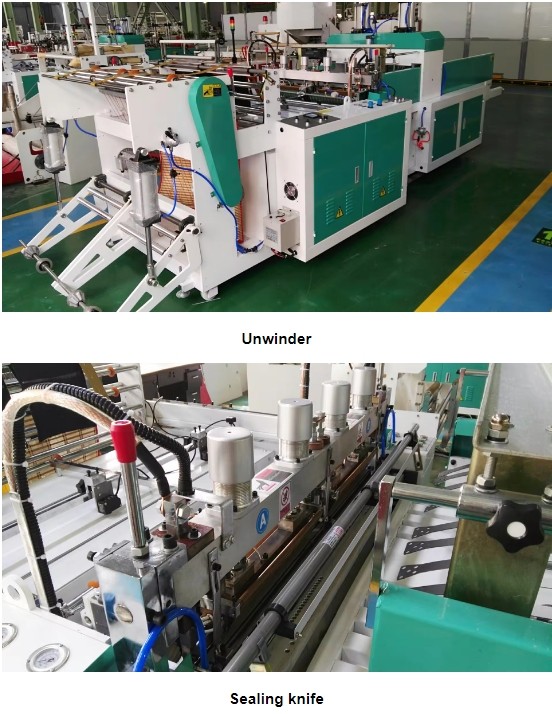

1. Easy clean turn knife system
2. 2lines EPC control system
3. Easy adjust gusset device
4. Automatic tension control unwind
1. Easy clean turn knife system
2. 2lines EPC control system
3. Easy adjust gusset device
4. Automatic tension control unwind
1. Easy clean turn knife system
2. 2lines EPC control system
3. Easy adjust gusset device
4. Automatic tension control unwind
