CW-800FBA PLASTIC HEAVY DUTY BOTTOM SEALING BAG MAKING MACHINE

Technical Parameter:

■ Because of the non-stop improving of machine and development of new functions, appearance and specification is subject to change without notice.

Wide width bottom seal model CW-800FBA machine specially designed for heavy duty LDPE and HDPE Liner bags.

The technology used here is quite different from the regular smaller width bottom seal machine.

The sealing of the film is done by heating seal system which gives a very strong seal.

The cutting is done through a mechanically driven rotary flying knife.

The setting of the cutting knife is much simpler compared to the Shear (scissor type) knife used on regular bottom seal machine

Using the design with flying knife by cylinder The sealing design is heated by heating knife, to achieve a strong sealing line.

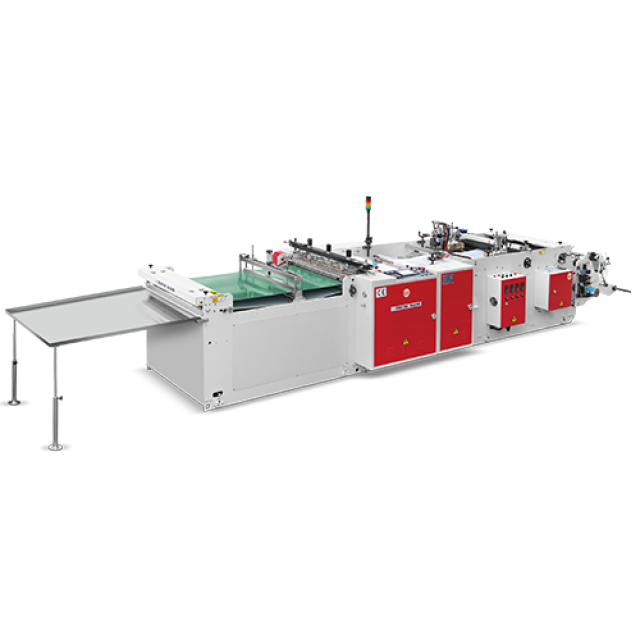

Overall look

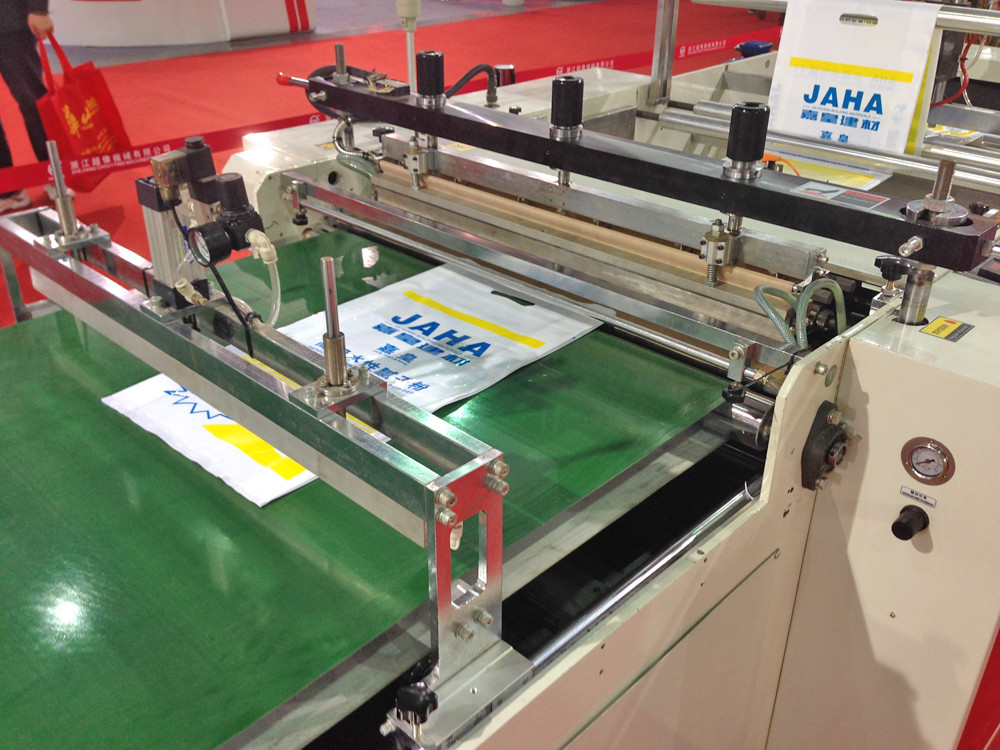

Sealing line cooling device

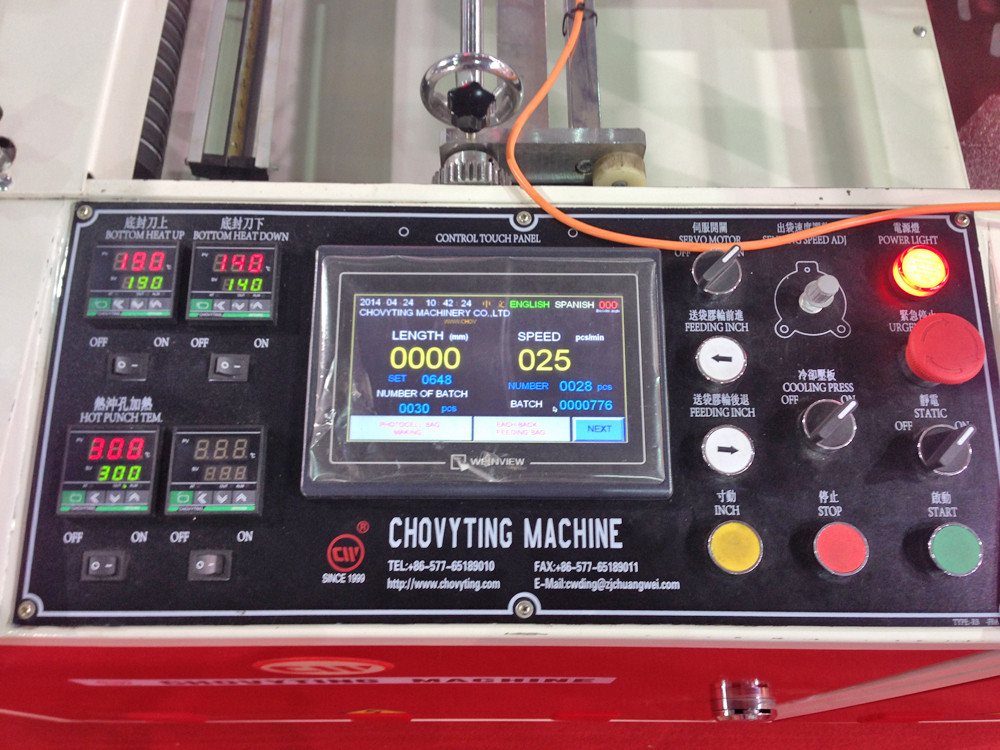

Main control panel

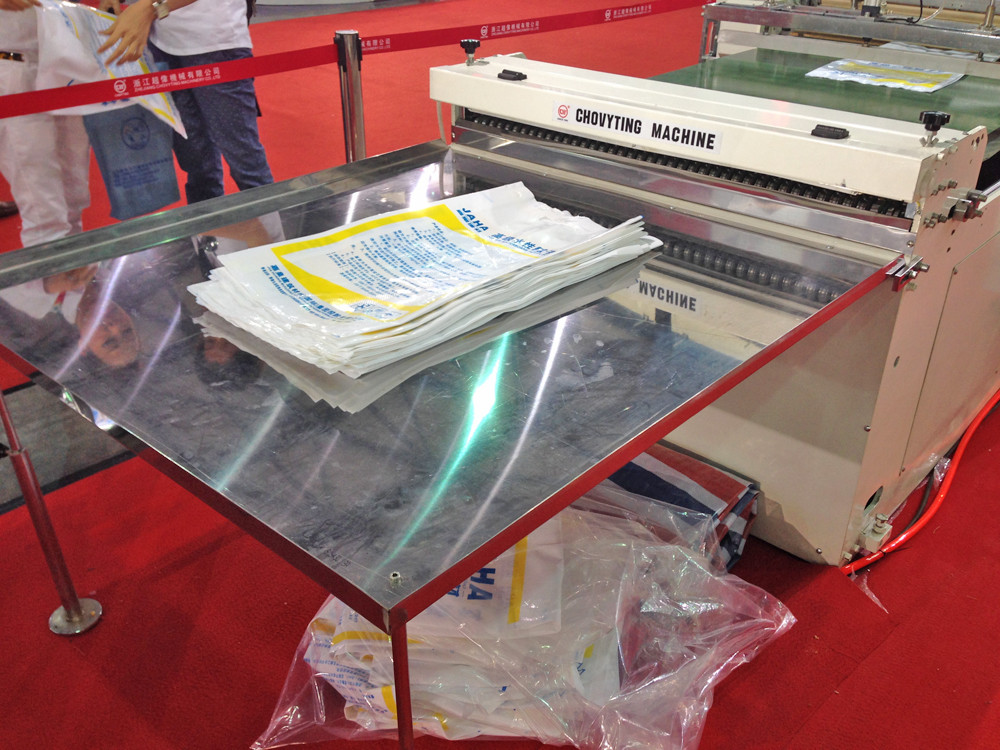

Finished bags
