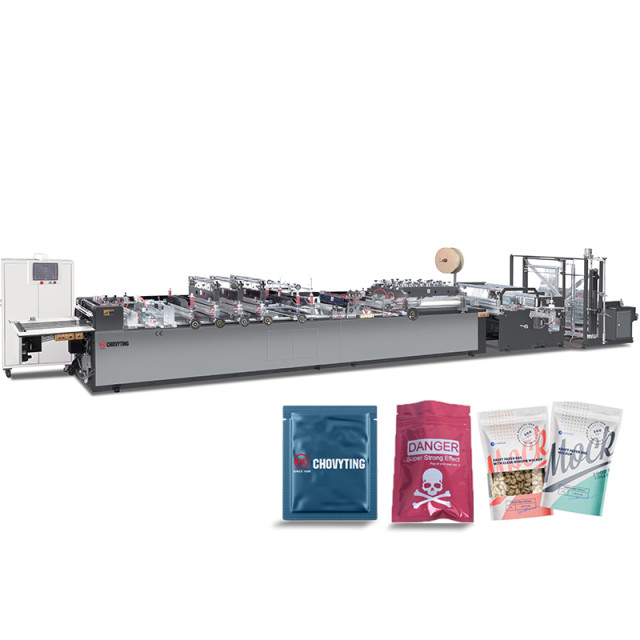

CWZD-600C HEAVY DUTY MULTIFUNCTION LAMINATED BAG MAKING MACHINE, CWZD-600C HEAVY DUTY MULTIFUNCTION LAMINATED BAG MAKING MACHINE Factory supply-Zhejiang Chaowei Machinery Co., Ltd.

Description

Technical Parameter:

Model		CW-400A	CW-500A	CW-600A	CWZD-600C	CW-600C CS
Width of unwinding		800mm	1000mm	1200mm	1200mm	1200mm
Pouch-making height	3 Sides seal/Centerseal seal		70-380mmxN [N<B]
	Stand up&zipper bag					100-580mm[G=70]
Pouch-making Width	3 Sides seal	70-380mm	70-480mm	70-580mm	70-580mm	70-580mm
	4 Sides seal					100-200mm
	Center seal	100-350mm	100-400mm	100-450mm		100-450mm
	Center seal gusset	100-230mm (G=60x2) 100-280mm [G=60x2] 100-330mm (G=60x2)				100-330mm [G=60x2]
	Stand up & zipper bag				70-260mm	70-260mm
Speed		100-170pcs/min	100-170pcs/min	100-170pcs/min	100-170pcs/min	100-170pcs/min
Line speed		35m/min	35m/min	35m/min	35m/min	35m/min
Total Power		24kw	2Bkw	34kw	40kw	52kw
Weight of Machine		3500kg	3850kg	4300kg	4500kg	4800kg
Overall Dimension		8x1.75x1.8m	8x1.95x1.8m	8x2.1x1.8m	10x2.1x2m	12.5x2.4x2m

■ Because of the non-stop improving of machine and development of new functions, appearance and specification is subject to change without notice.

Brief introduction:

Newly designed double stand up,double zipper bag making machine, whose mechanism is new designed. also this machine show the most advanced technology of three servo motor driving. (C type series machine have no center sealing and four side sealing )

Features:

1 3 pcs servo motor driving, PLC control by panasonic from JAPAN

2 Vertical connected unit of floating structure, no inertia when the machine running in high speed

3 Special stand-up film inserting and zipper guiding device

4 Independent zipper heat sealing and stand-up bag heat sealing system

5 Heavy tuty bridge type heat sealing structure, to get a stronger sealing

Optional devices:

1 Folding type bag

2 K type bag device

3 Handle puncher
