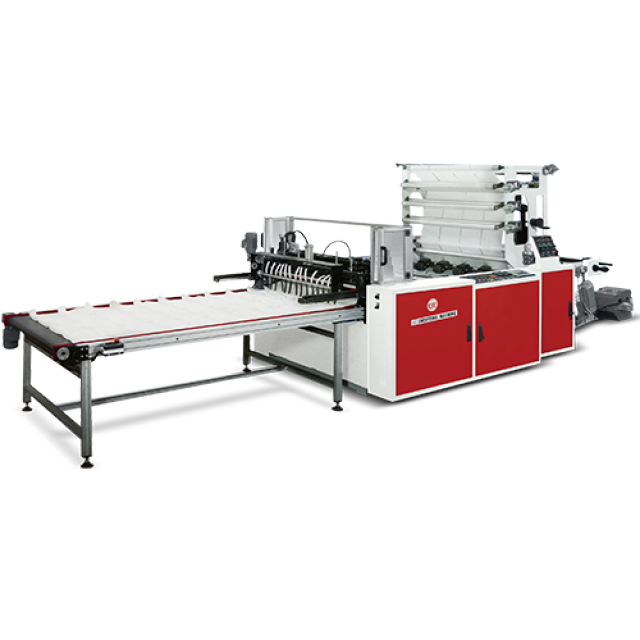

CW-1000BS5 HIGH SPEED BOTTOM SEALING BAG MAKING MACHINE

1. Tube film double side gusseting unit.
2. Punching unit for handle.

Online Inquiry Contact Us

Description

Technical Parameter:

Model	CW-1000BS5 AP	CW-1000BS5
No. of tracks [max.]	5Lines	5Lines
Film unwind width	900mm	900mm
Film unwind diameter	1000mm	800mm
Bag width [each line]	200mm x 5Lines	200mm x 5Lines
Bag length	250-700mm	250-3000mm
Thickness of film	0.01-0.04mm	0.025-0.08mm
Production speed	200pcs x 5Lines	200pcs x 5Lines
Line speed	85m/min	90m/min
Total power	17.6 kw	11kw
Weight	2800kg	1800kg
Machine Dimension	8800 x 2030 x 2050mm	5520 x 1850 x 2050mm

■ Because of the non-stop improving of machine and development of new functions, appearance and specification is subject to change without notice.

Brief Indruction:

This machine can make a big roll into small rolls by using hot slitting. The machine productivity is extremely high. It's suitable to make 1-5 lines hot slitting bottom sealing bags.
This machine can simultaneously produce bottom sealing bags in different bag width.
With a fully automatic computer control servo system, this machine can have both a high speed with a stable productivity. Suitable to produce multi-lines printed bottom sealing bags.
This machine has Hot Slitting Device, Block Device and Perforation Device to choose according to different requirements.
