HomeProductsVest Bag T-Shirt Making Machine SeriesCW-500V FULLY AUTOMATIC SUPER HIGH SPEED T-SHIRT BAG MAKING MACHINE

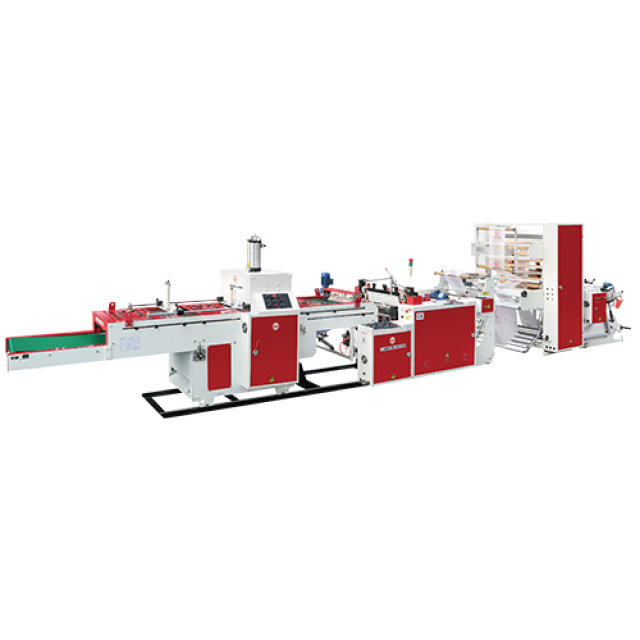

CW-500V FULLY AUTOMATIC SUPER HIGH SPEED T-SHIRT BAG MAKING MACHINE

CW-500V FULLY AUTOMATIC SUPER HIGH SPEED T-SHIRT BAG MAKING MACHINE

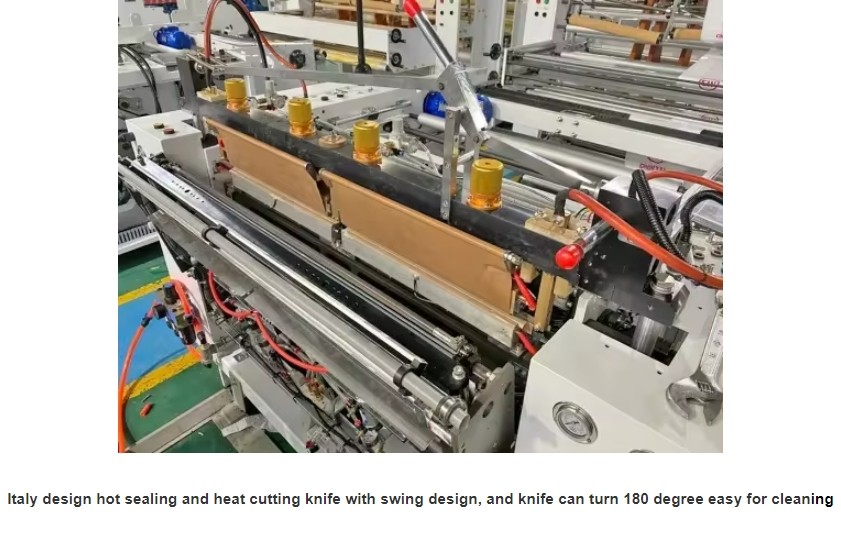

1. Easy clean turn knife system
2. 2lines EPC control system
3. Easy adjust gusset device

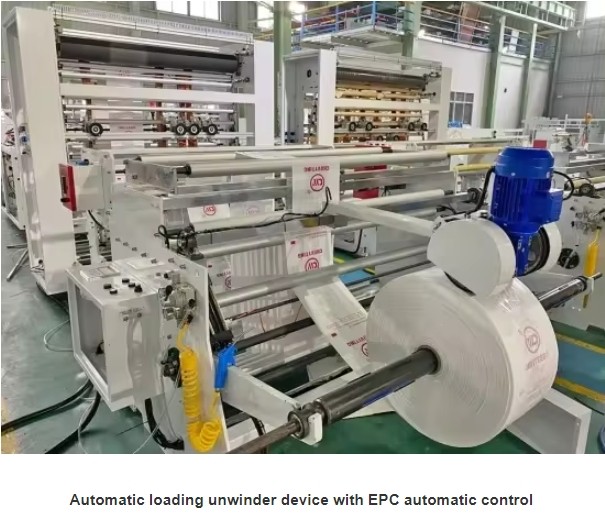

4. Automatic tension control unwind
Online Inquiry Contact Us

Description

Technical Parameter:

Model CW-500V  CW-400V2 CW-300V2 GS
Bag length 370-700mm 370-700mm 370-700mm
Width of bag making(Max.) 500mm 400mmx2Line 300mmx2Line
Width size of cutting knife 580mm 480mmx2Line 380mmx2Line
Speed of bag making(Max.) 250pcs 250pcsx2Line 220pcsx2Line

Line speed 125M/min 125M/min 100M/min
Total power 10KW 18.5KW 20KW
Machine weight 2800kg 3100kg 3800kg
Machine dimension 8000x1350x1800mm 8000x1850x1800mm 10000x2000x2000mm

■ Because of the non-stop improving of machine and development of new functions, appearance and specification is subject to change without notice.

Brief Introduction:

This is a practical high yield single line t-shirt bag making machine. Fully automatic operation, customers can effectively reduce the cost of investment and labor workforce.

Features:

1  Single line width range practical design

2  Unwinding tension adopts fully automatic tension control

3  Unwinding roll with big diameter option save material changing time

4  With feeding automatic correction design

5  Newly designed of punch device, able to adapt to a longer length of t-shirt bag
