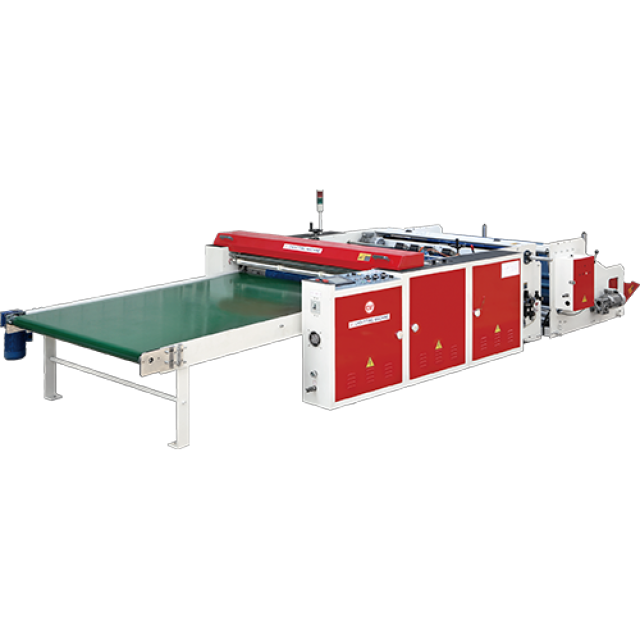

CW-1400FB FULLY AUTOMATIC BOTTOM SEALING BAG MAKING MACHINE BY FLYING KNIFE SYSTEM

CW-1400FB FULLY AUTOMATIC BOTTOM SEALING BAG MAKING MACHINE BY FLYING KNIFE SYSTEM

1. Gussetiny device
2. Hot slitting device
3. Handle puncher

Description

Technical Parameter:

Model

CW-800FB

CW-1000FB

CW-1200FB

CW-1400FB

CW-1600FB

CW-800FBA

Bag making length

200-3000mm

1100mm

Bag making width

700mm

900mm

1100mm

1300mm

1500mm

600mm

Mechanical speed

80pcs/min

80pcs/min

80pcs/min

80pcs/min

70pcs/min

15-40pcs/min

Line speed

60m/min

60m/min

60m/min

60m/min

60m/min

40m/min

Distance of double sealing line









30-100mm

Film thickness

(0.04mm-0.15mm) x 4

[0.06mm-0.25mm] x 4

Total power

6.8KW

75KW

8KW

9KW

10KW

11.4KW

Machine weight

1680kg

1800kg

2000kg

2100kg

2200kg

2800kg

Machine dimension (LxWxH)

6m x 1.6m x 1.3m

6m x 1.8m x 1.3m

6m x 2m x 1.3m

6m x 2.2m x L3m

6m x 2.4m x 1.3m

6m x 1.5m x 1.4m

Air compressor

6HP

6HP

6HP

6HP

6HP

6HP

■ Because of the non-stop improving of machine and development of new functions, appearance and specification is subject to change without notice.

Brief introduction:

This series machines are able to make large bags with width up to 1500mm, and length up to 3000m, which is usually used as garbage bag, ice bag or industrial bags for pellets packaging.

Features:

1  Tension free

2  Heating wire sealing
3  Fly knife in synchronized belt for cutting
4  Suitable for thick plastic film

Note:

Please be free to write me the applied reel width, film thickness and required bag making width & length, for us to work out a proper offer

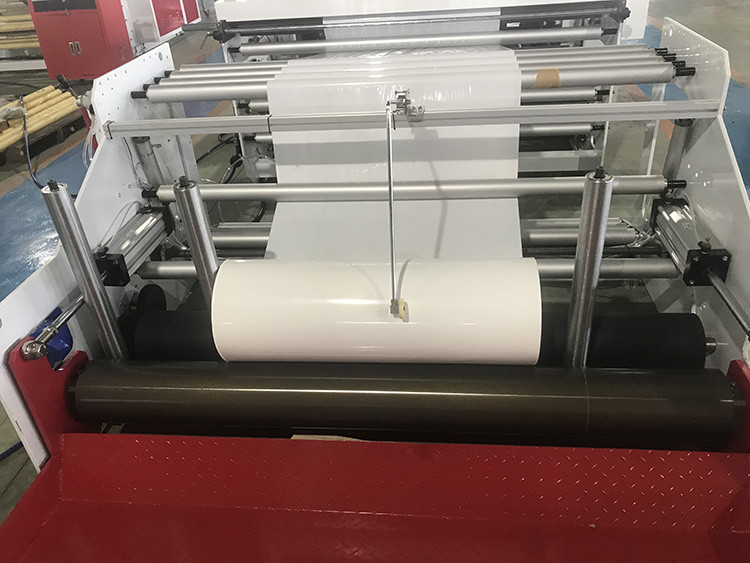

Pneumatic unwinder for jumbo roll

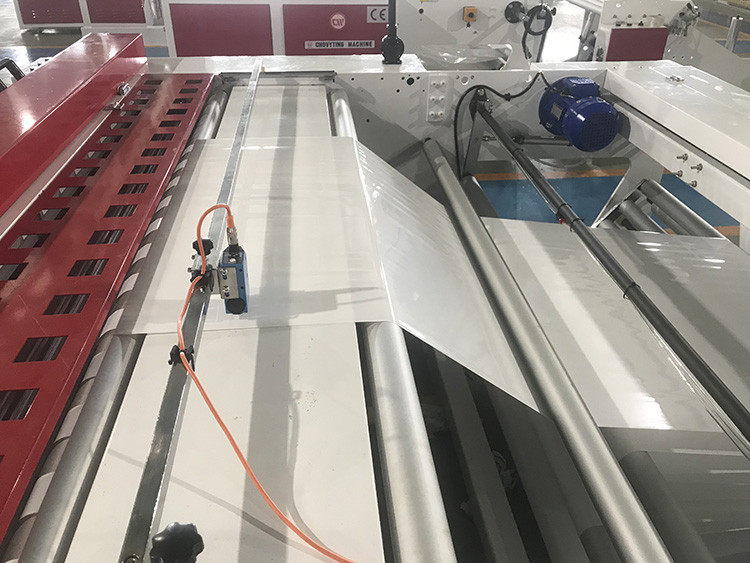

Traction roller part

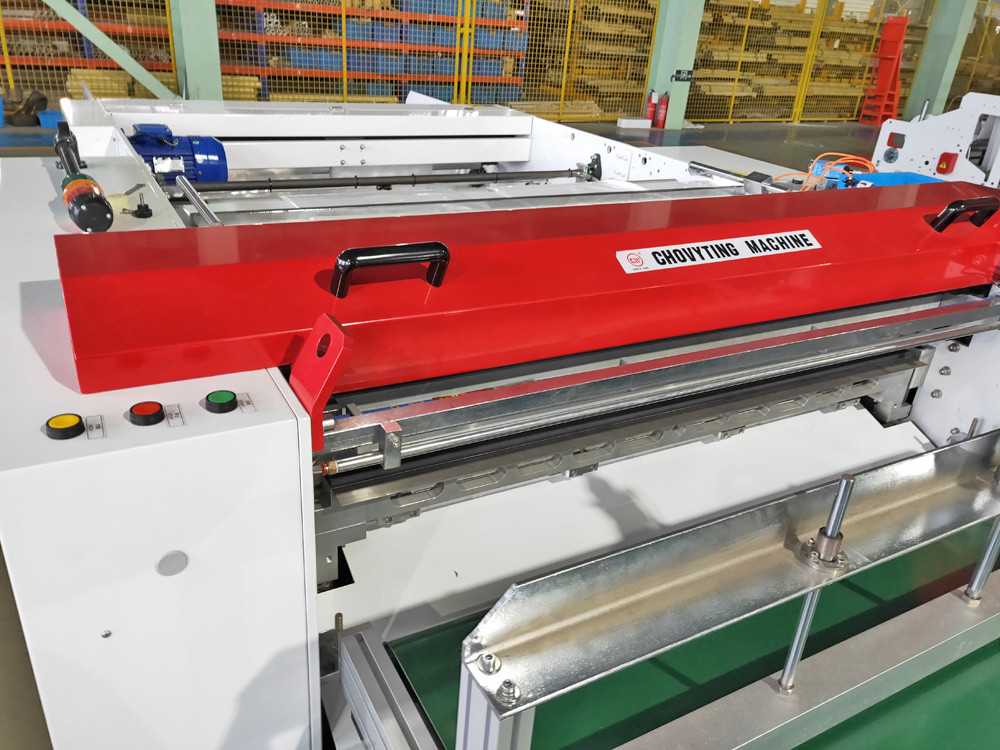

Flying knife part

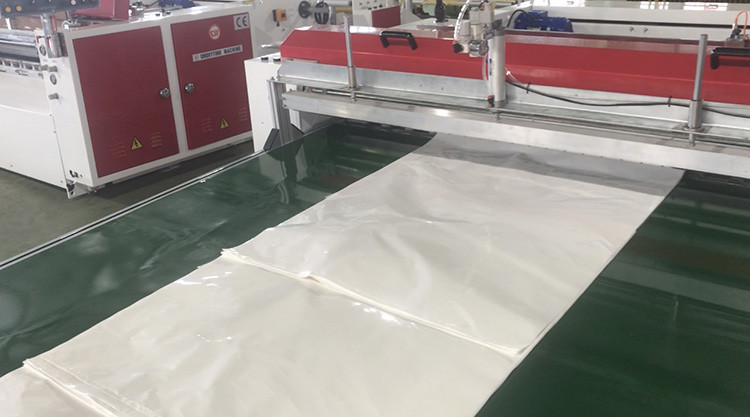

Collection part
