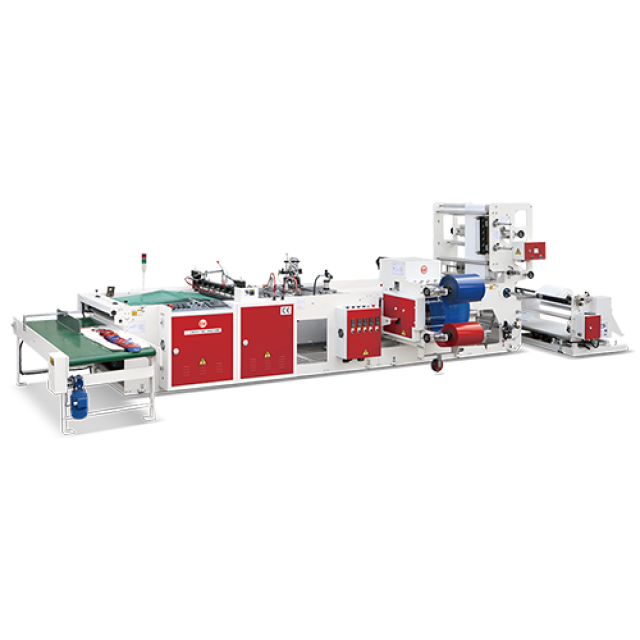

CW-800CSD SUPER HIGH SPEED AUTOMATIC SOFT LOOP HANDLE BAG MAKING MACHINE

CW-800CSD SUPER HIGH SPEED AUTOMATIC SOFT LOOP HANDLE BAG MAKING MACHINE

1. Single sheet film folding unit (hydraulic auto loading deviec)
2. Double sealing knife device
3. Bottom sealing knife device
4. Triangle folding device

Online Inquiry Contact Us

Description

Technical Parameter：

Model	CW-800ZD	CW-800LP	CW-800SP	CW-800CSD	CW-800SDP
Length of bag-making（Height of bag）	250-750mm	250-750mm	250-750mm	250-700mm	250-700mm
Width of bag-making	250-600mm	250-600mm	250-600mm	250-600mm	250-600mm
Top-folding edge	50-75mm	50-75mm	50-75mm	50-75mm	50-75mm
Bottom gusset	20-70mm	20-70mm	20-70mm	20-60mm	20-60mm
Speed of bag-making
Soft loop handle bag	60pcs/min	60pcs/min		120pcs/min	100pcs/min
Patch handle bag	60pcs/min		60pcs/min		100pcs/min
Poly draw handle bag	65pcs/min
Die cut handle bag	80pcs/min	80pcs/min	80pcs/min	140pcs/min	120pcs/min
Total power	13KW	10KW	10KW	10KW	18KW
Machine weight	3500kg	3200kg	3200kg	3000kg	3600kg
Machine dimension [L x W x H]	8.2 x 3.1x1.87m	6.2x 3.1 x 1.87m	6 x 3.1 x 1.87m	7x 2.2 x 1.95m	10.2 x2.2x1.95m
Air compressor [not included]	7HP	8HP	8HP	8HP	75HP

■ Because of the non-stop improving of machine and development of new functions, appearance and specification is subject to change without notice.

Brief Inroduction:

CW-800CSD super high speed automatic soft loop handle bag making machine can make SOFT LOOP HANDLE BAG & DIE CUT HANDLE BAG.

Features:

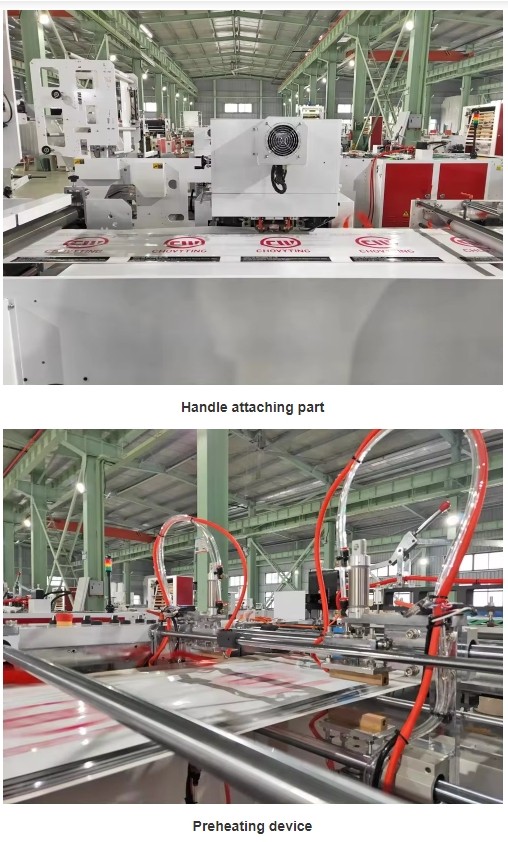

1 3 pcs servo motor drive from soft loop handle device.

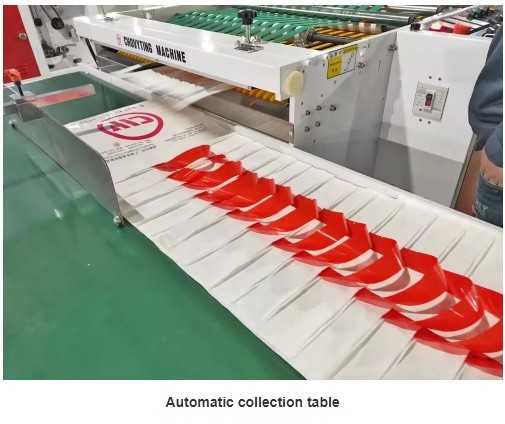

2 Newly design of bag stack and speed down conveyor system.

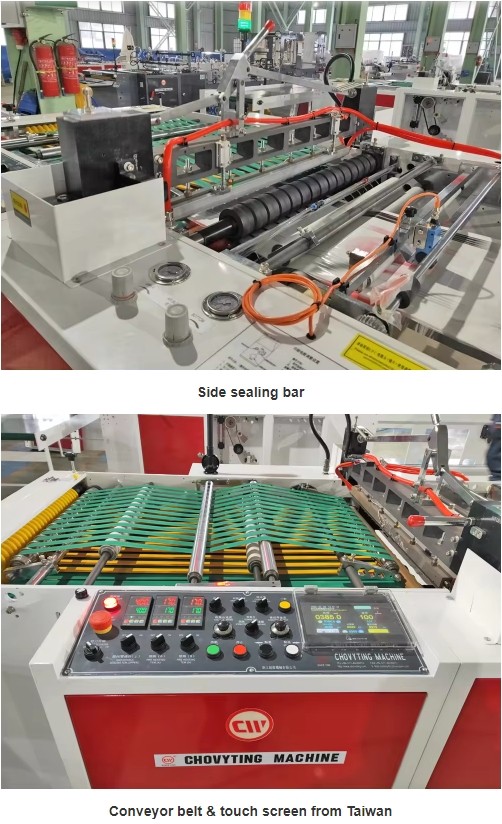

3 Special design of new type side sealing knife cooling and lifting device (ITALY SYSTEM)

4 Top-folded sealing knife adopt continuously heating sealing.

5 High Accuracy SICK photocell,suit for high speed tracking.

Optional devices:

1 Single sheet film folding unit (hydraulic auto loading device)

2 Double sealing knife device

3 Bottom sealing knife device
